Process Piping
Grade selection follows the process fluid, temperature and chloride exposure. Welded and seamless A312 pipe are quoted as separate routes to match the approved material list.
Process lines · Utility piping · Replacement sections
Stainless Steel Pipe Manufacturer
ASTM A312 · 304/304L and 316/316L for wholesale pipe orders
We supply ASTM A312 pipe in 304, 304L, 316 and 316L for plant pipework and fabrication. Seamless and welded pipe are separate purchase items. The NPS 1/2–8 table compares nominal Schedule 10S, 40S and 80S dimensions; cut lengths, end work and surface treatment are itemized with the selected pipe.

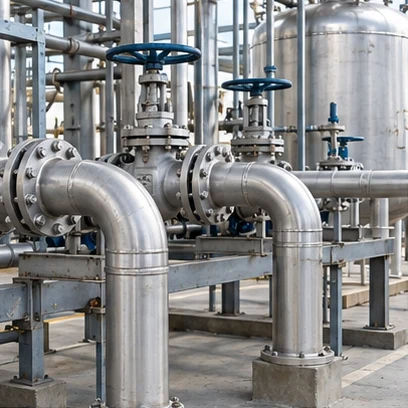

Stainless Pipe for Process Plants & Fabrication
Our A312 range covers industrial pipework and fabricated connections. Hygienic, instrumentation and heat-exchanger tubing are reviewed against their separate dimensional, surface and product requirements.
Equipment Connections
Pump connections and equipment skids often combine pipe with machined or welded components. Cut lengths, bevels and a clean bore help the shop prepare those joints; any internal finish requirement belongs on the same item as the pipe size.
Equipment connections · Workshop fabrication
Stainless Steel Pipe Specifications
The supply options below pair the material grade with route, wall series and preparation. Mixed-size purchases are priced line by line, including the work needed before the pipe reaches your workshop.
| Item | Supply Range |
|---|---|
| Product | Industrial stainless steel round pipe |
| Grades | TP304 / TP304L / TP316 / TP316L; other grades reviewed as separate inquiries |
| Manufacturing route | Seamless and welded pipe |
| Product standard | ASTM A312/A312M; ASME SA312 when specified |
| Nominal pipe size | Selected NPS 1/2–8 dimensions below; larger sizes and other route/grade combinations by project inquiry |
| Length | 5.8–12 m, random lengths and cut-to-length orders |
| Pipe ends & finish | Plain, beveled or threaded ends; surface finish stated on the order |
| Inspection documents | Material certificate, dimensional checks and specified pipe-test records |
| Order & delivery | Itemized quantities, export packing and shipment schedule |
Material grade, seamless or welded route, and finished length are itemized in the quotation alongside any batch or cutting minimum.
Stainless Steel Pipe Sizes & Wall Thicknesses
Each row links nominal pipe size to actual outside diameter and the three wall series. Select the size and wall together, then pair them with the required grade and route.
Swipe left to see all columns.
| NPS | DN | Outside diameter (mm) | Sch 10S wall (mm) | Sch 40S wall (mm) | Sch 80S wall (mm) |
|---|---|---|---|---|---|
| 1/2 | 15 | 21.3 | 2.11 | 2.77 | 3.73 |
| 3/4 | 20 | 26.7 | 2.11 | 2.87 | 3.91 |
| 1 | 25 | 33.4 | 2.77 | 3.38 | 4.55 |
| 1 1/2 | 40 | 48.3 | 2.77 | 3.68 | 5.08 |
| 2 | 50 | 60.3 | 2.77 | 3.91 | 5.54 |
| 3 | 80 | 88.9 | 3.05 | 5.49 | 7.62 |
| 4 | 100 | 114.3 | 3.05 | 6.02 | 8.56 |
| 6 | 150 | 168.3 | 3.40 | 7.11 | 10.97 |
| 8 | 200 | 219.1 | 3.76 | 8.18 | 12.70 |
Nominal pipe dimensions follow ASME B36.19M. Product tolerances and inspection follow the ordered A312 requirements.
Cut Lengths, Prepared Ends & Surface Finishes
Full lengths leave cutting to your shop; prepared pieces combine pipe and end work in one purchase. The finish and machining allowance stay tied to each part reference.
For a slip-on connection, check the material, bore and facing in our pipe flange range.
Cut Lengths & Pipe Ends
Finished cut lengths, bevel angles and machining allowances follow the drawing. We group matching pieces by item reference, making repeated spools and replacement sections easier to receive and allocate.
- Cutting
- Length and quantity by line item
- End preparation
- Plain ends, facing or bevel requirements
- Identification
- Item references retained for cut pieces

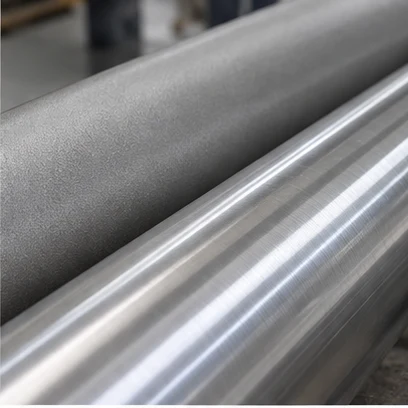

Pickling, Passivation & Polishing
Pickling removes oxide scale and heat tint. Passivation treats free-iron contamination on a clean surface; polishing produces the specified texture. We quote the required treatment and finish separately for the relevant pipe surface.
- Pickling / passivation
- Separate the cleaning/treatment procedure from the visual finish and acceptance test.
- Polishing
- Identify the internal or external surface, required roughness and measurement method when relevant.
- Clean handling
- Protection after the specified treatment
Grade Verification & Clean-Surface Inspection
Material records identify the heat chemistry and pipe test results. Surface checks cover contamination, handling damage and the finish required for fabrication.

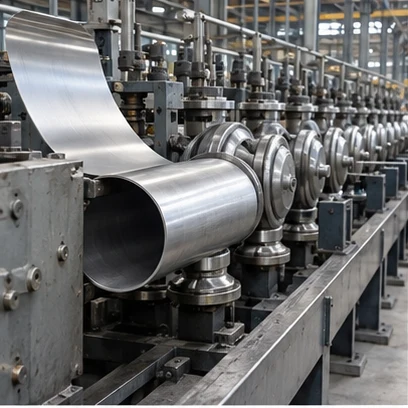

Seamless & Welded Supply
Seamless and welded construction remain separate order choices. Heat treatment, final sizing and end preparation follow the specified route and product requirements.
Pipe Inspection

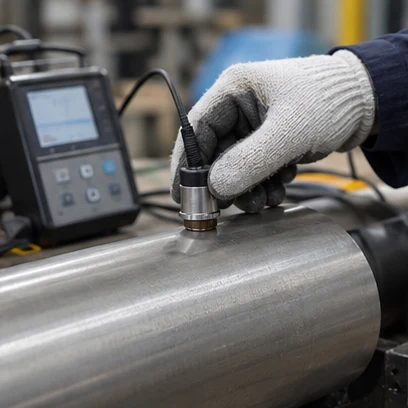

Dimensional inspection covers diameter, wall, length, ends and surface condition. We coordinate the specified mechanical, nondestructive or hydrostatic tests with any purchaser witness points.
Chemistry & Grade Verification
Grade verification must distinguish 304 from 316 and, where needed, standard-carbon from low-carbon grades. The required PMI method and coverage are agreed separately; a method that cannot measure carbon cannot by itself verify the L designation.
Dimensions & Ends
Diameter, wall, length, straightness and end preparation are checked against the purchase dimensions.
Surface Acceptance
Inspection identifies the internal surface, external surface or both. Visual condition, specified roughness and treatment checks are recorded for the surface actually ordered.
Release Documents
Material records and inspection reports accompany a packing list organized for receiving and traceability.
Packaging & Delivery
Surface Protection
Wrapping and separators limit rubbing between stainless surfaces. Packing is matched to the finish and pipe size, with finished stainless kept apart from carbon-steel contact.
Pipe-End Protection
End caps protect openings and prepared edges. Supports along long pipes protect their shape and keep finished bevels clear of contact points.
Package Identification
Grade, size, quantity and order-item references identify bundles and crates. This is especially useful when similar-looking 304L and 316L items travel in the same shipment.
Export packing & scheduled delivery
Full-length pipe and cut pieces are packed as separate order groups. We can arrange split deliveries around the fabrication sequence, with each shipment retaining its own itemized packing list.
Stainless Steel Pipe FAQ
Can seamless and welded items share one order?
Yes. Seamless and welded items have separate lines with their grade, wall and quantity. Any change of route is agreed against the purchase specification before supply.
Does a polished finish make this sanitary tubing?
No. This page covers A312 pipe. Sanitary tubing requires its own dimensional, surface and connection requirements, which we review as a separate inquiry scope.
Can I combine small quantities of several grades?
A mixed list can be quoted together. The minimum depends on each grade, size and processing route; the quote identifies any batch or cutting minimum before the order is placed.
Can an independent inspector review my shipment?
Yes. Inspection stages, witness points and release documents are arranged with your appointed inspector so the inspection happens before the affected material is released.
How are grade or delivery concerns investigated?
The bundle reference, heat number where available and receiving photographs help identify the affected items. We compare them with the order and shipment records, then handle the next steps under the agreed terms.
Does an external polished finish establish the internal surface condition?
No. Internal and external finishes are separate requirements. An order needing a particular bore finish or roughness identifies that surface explicitly, with its inspection basis alongside the pipe grade and dimensions.
Get a Quote for Stainless Steel Pipe
Attach your material list or describe the required grade, size and quantity, then note the destination. We will quote the pipe, preparation and delivery scope together; an attached cutting list does not need to be retyped.
