Type E Grade B pipe for wholesale sprinkler fabrication
A795 Type E Grade B sprinkler pipe is offered in selected NPS 1–10 light- and standard-weight walls. Plain or compatible prepared ends are available with the specified length and finish; orders requiring listed pipe use the qualification records for the proposed product configuration.
Our main A795 range is Type E Grade B ERW pipe. Light- and standard-weight selections are quoted with their lengths, prepared ends, coating and required records.
| Item | Our supply option | Identify on the order |
|---|---|---|
| Pipe material | A795 Type E Grade B, ERW steel pipe | Standard edition, type and grade |
| Dimensions | Selected light- or standard-weight walls | NPS, actual wall and dimension unit |
| Lengths | 5.8 m, 6 m, 12 m or reviewed cut lengths | Finished length and piece count |
| Prepared ends | Plain, beveled, roll-grooved or compatible threads | End detail and preparation quantity |
| Surface | Black, red-coated or specified galvanized pipe | Coating system and treatment extent |
| Order records | Material, examination and requested product records | Document requirements for the supplied item |
Scroll sideways to see every column.

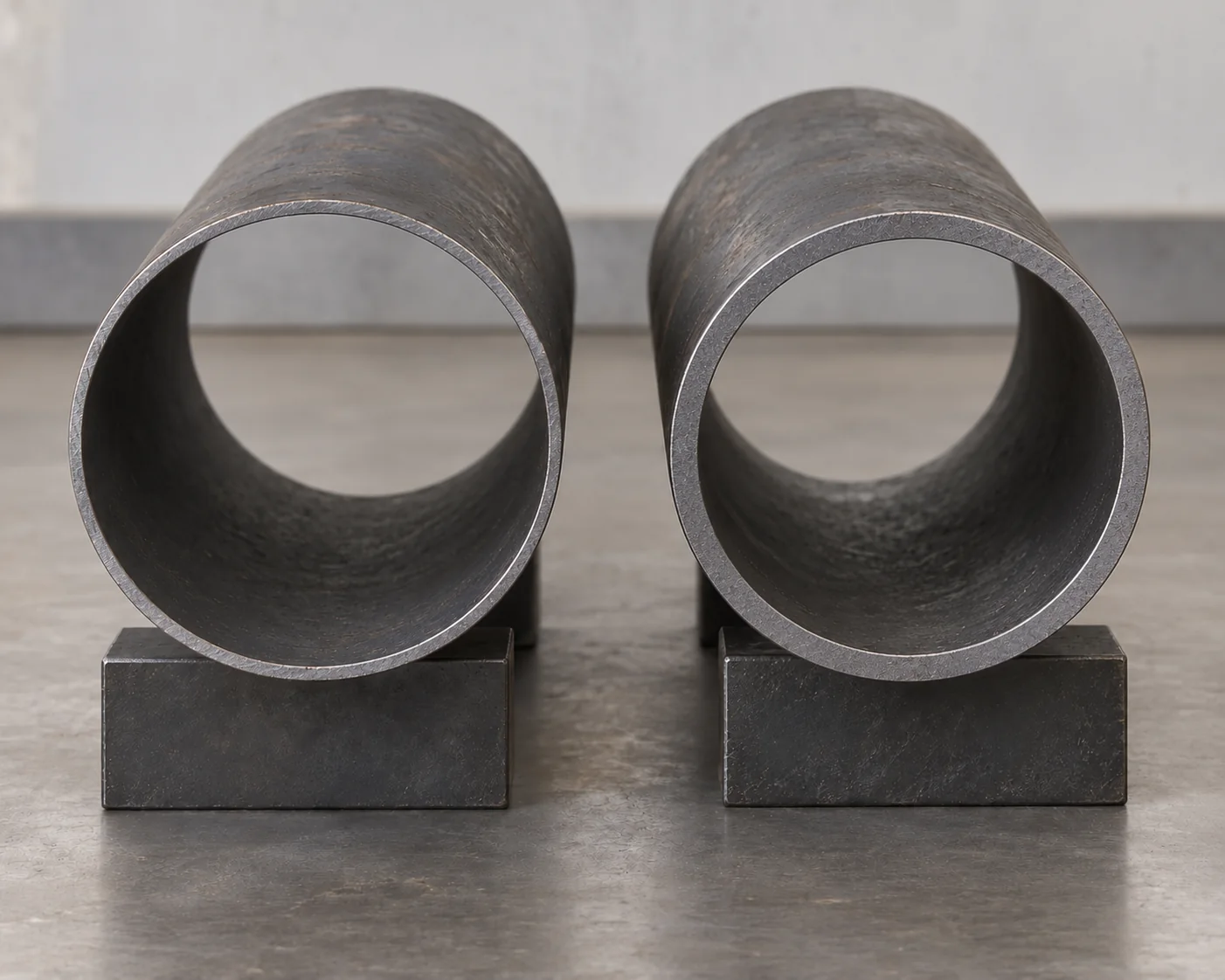

Compare the actual wall, especially at NPS 8 and 10. In this catalog selection, those standard-weight sizes follow Schedule 30; the smaller standard-weight rows shown follow Schedule 40. The light-weight 8 and 10 in. walls are 4.78 mm, so a generic Schedule 10 label does not describe the selection precisely.
| NPS (in.) | Nominal OD (mm) | Light-weight nominal wall (mm) | Standard-weight nominal wall (mm) | Standard-weight wall series |
|---|---|---|---|---|
| 1 | 33.4 | 2.77 | 3.38 | Schedule 40 |
| 2 | 60.3 | 2.77 | 3.91 | Schedule 40 |
| 4 | 114.3 | 3.05 | 6.02 | Schedule 40 |
| 6 | 168.3 | 3.40 | 7.11 | Schedule 40 |
| 8 | 219.1 | 4.78 | 7.04 | Schedule 30 |
| 10 | 273.1 | 4.78 | 7.80 | Schedule 30 |
Scroll sideways to see every column.
These are nominal catalog dimensions; the purchase line retains the specified wall and unit system. Other wall requests are reviewed against the required A795 edition and joining method.
Grade B is retained through cutting and end preparation. Grade A requests are reviewed separately against their dimensions and required product records.
Type S Grade B seamless requests are separate from the Type E range. They are reviewed by dimensions, delivery condition and records for that manufacturing route.
A795 light-weight pipe supports rolled-groove, welded and plain-end fitting arrangements. A threaded or cut-grooved material list needs a different wall and product review. We price the requested end work against the pipe selected for that line.

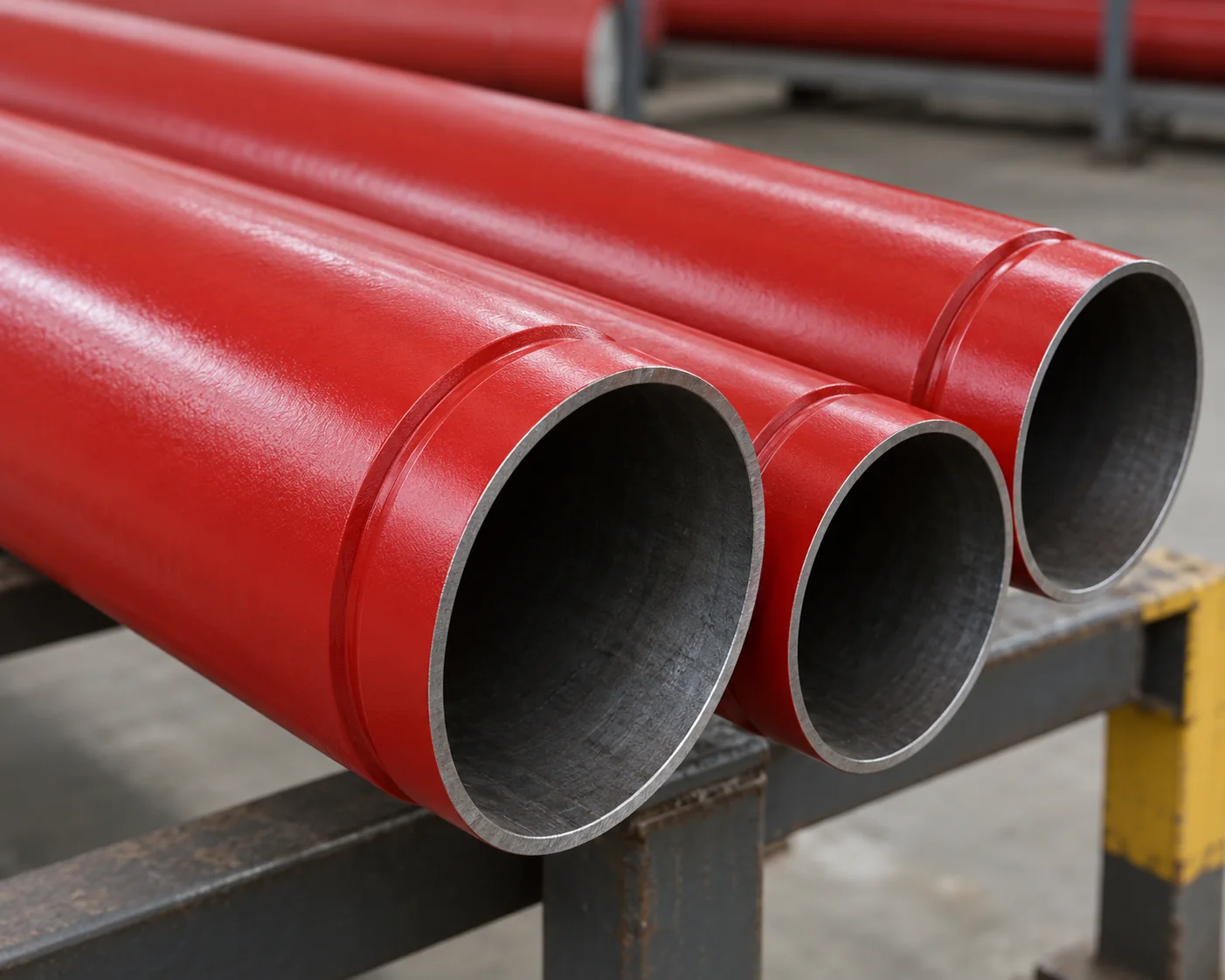

Standard-weight A795 accommodates cut or rolled grooves, threading, welding and plain-end fittings. The specified joint still determines the end details and applicable product conditions. For grooves, identify the coupling system and whether the order calls for a rolled or cut groove.
One-end and both-end preparation are priced separately. Both ends grooved means two prepared ends per pipe piece, with the finished length and piece count retained on the same line.
Black pipe and red-coated pipe are separate finish choices. Red paint, epoxy or polyester treatment is quoted by the specified system, coverage and treatment of prepared ends.
A galvanized request identifies the zinc-coating requirement with the pipe and end configuration. Any later cutting, threading or recoating also belongs in the product review when certification is required. A finish change is checked against the applicable supplied-product conditions before the material line is released.
The quotation identifies the proposed manufacturer and the size, wall, finish and end configuration for each A795 line. For a listed or approved product request, we return the applicable product record and its covered configuration with the offer. Items awaiting qualification remain identified before the order is released.
When the schedule requires both UL and FM, the offer lists a record for each. Any restriction on size, wall, end work or finish stays with the corresponding material line for the buyer’s submittal review.
Material records identify the supplied A795 type, grade and pipe group, with the required chemistry and mechanical results for that material.
A795 provides for hydrostatic testing or, with purchaser acceptance, nondestructive electrical examination. The order identifies the applicable route and its record coverage. A manufacturing test pressure is not used as the installed working-pressure rating for a pipe-and-joint system.
Inspection checks the OD, wall, finished length and prepared ends. Grooves follow the selected coupling system; threads follow the specified mating fitting.
Customer and third-party inspections are arranged before production. The agreed plan identifies the records, material groups and release points needed before loading.
A price per piece, meter or weight needs the same finished length and wall behind it. Our offer states the quantity basis and separates pipe, end preparation, coating, required records and transport scope. Metric mill lengths retain their actual dimensions when the requisition uses feet.

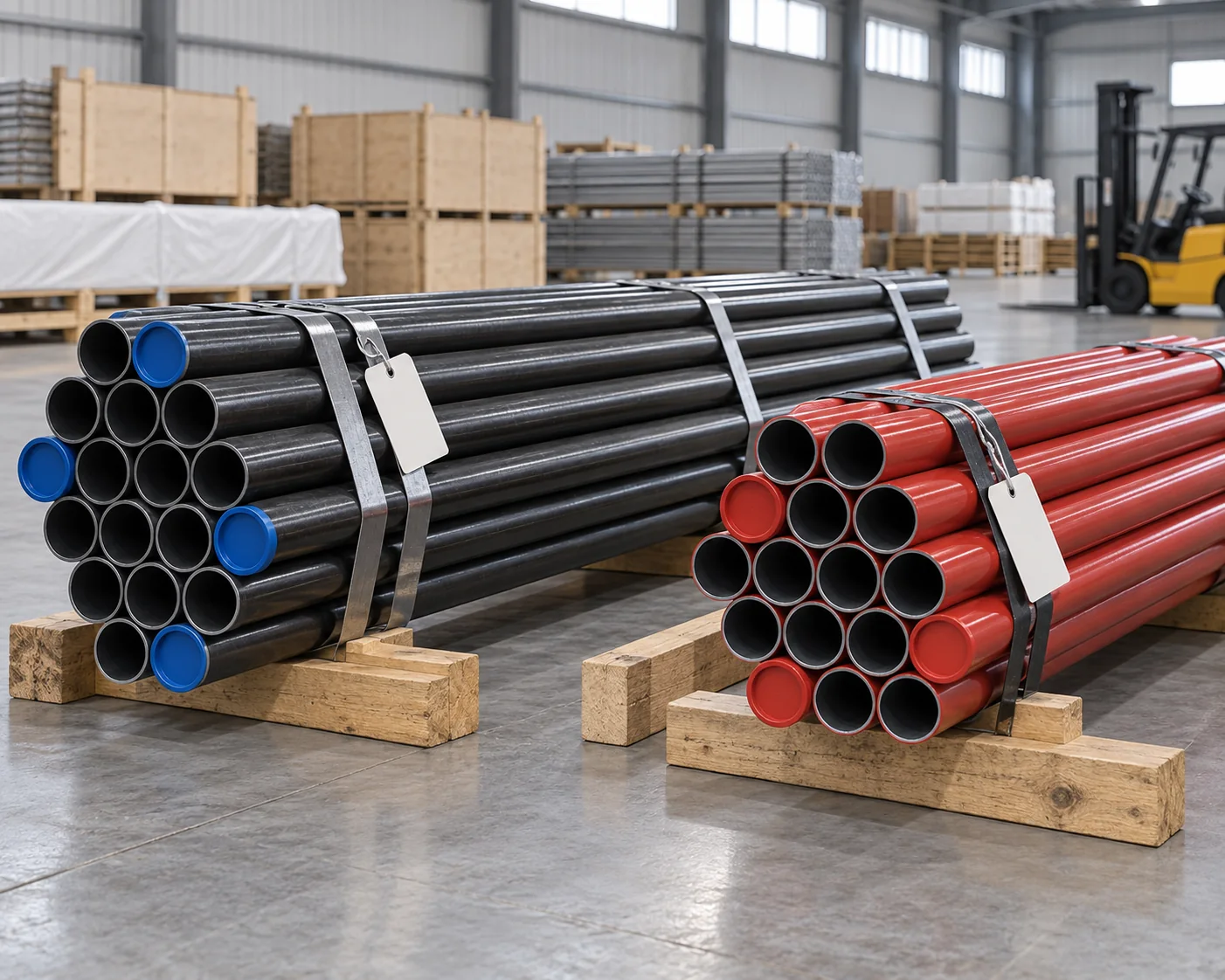

Pipe with the same OD can carry a different wall, finish or end preparation. Bundles retain those item references and piece counts, so your receiving team can reconcile each group with the material list. Short prepared pieces have their own count rather than being absorbed into a full-length bundle.
Supported bundles and restraints suit the finished lengths and coating. Prepared openings and threads receive the packing protection agreed for transport. The quotation identifies packing and shipment terms for the destination, keeping factory preparation separate from delivery scope.
Yes. Send the material list and the manufacturer or certification requirements already specified. The preliminary quote identifies the proposed pipe and any qualification items still to resolve. The purchase is released against the accepted product scope; initial pricing is not an approved project submittal.
Yes. Trim pieces are reviewed as separate items by size, wall, length, ends and intended use. Their material and product-record requirements remain distinct from the main distribution-pipe selection.
Include the previous order reference and the dimensions, finish and prepared ends needed for the replacement. A matching color or nominal size does not fully identify that item. The new offer retains the replacement requirement and reviews the applicable product scope for the new supply.
No. Color identifies the finish, while listing or approval records cover the actual manufacturer and product configuration. The finish and prepared ends must match the product scope required by the project.
Attach your A795 material list with quantities and destination. Include the specified edition, type and grade, actual wall, lengths, ends, finish and required product records. For an initial price, send the pipe lines you already have. We return itemized pipe and preparation prices with the proposed product scope, record package, packing and shipment terms.
