Frames for equipment, conveyor routes and maintenance platforms
Equipment frames, conveyor supports and platform framing place the steel around the plant layout and required access clearances. We fabricate the members, attached plates and connections from the approved drawings, as shop assemblies or pieces prepared for site erection.
| Steel package | Fabricated components | Interface covered by the drawings |
|---|---|---|

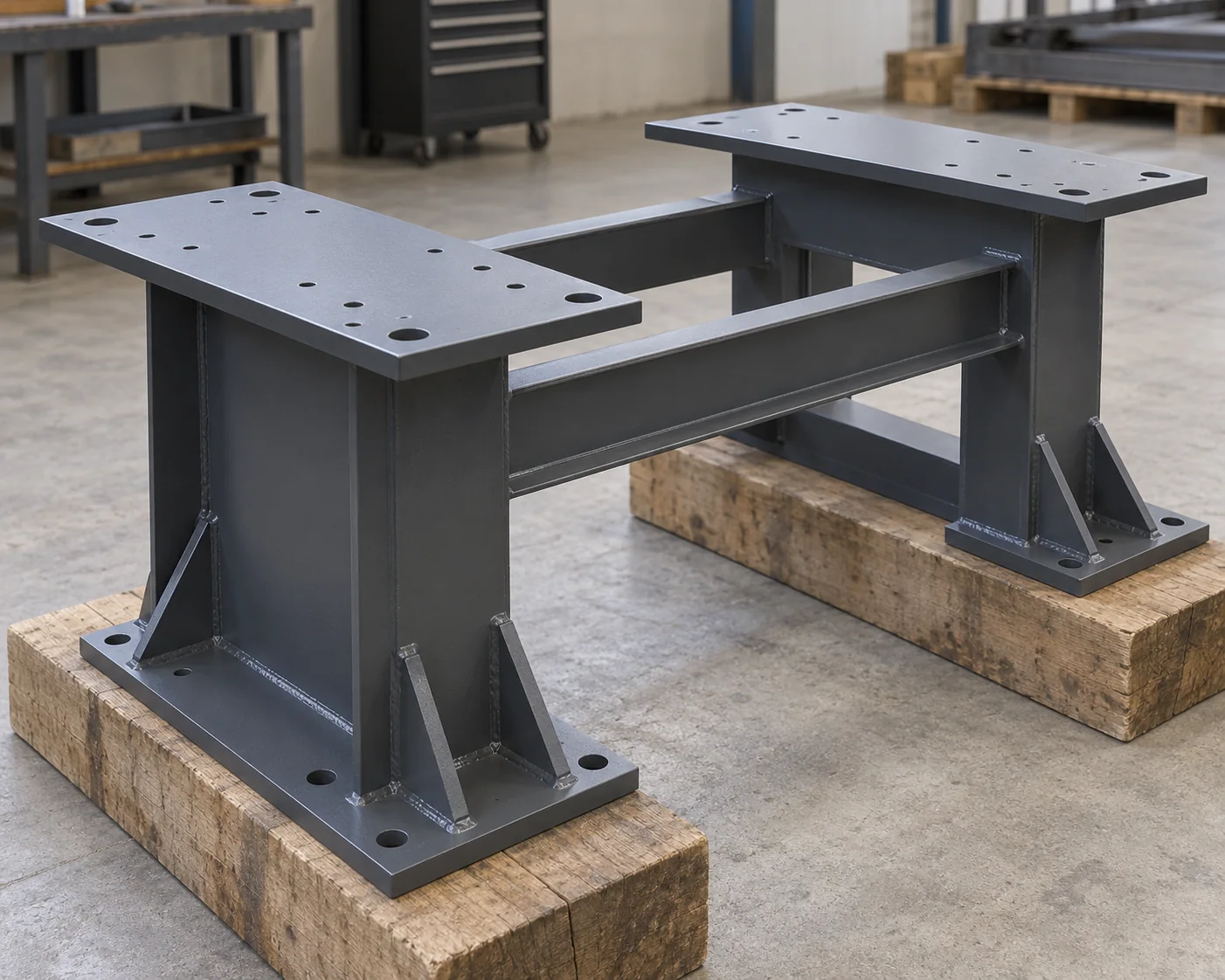

| Equipment frames | Columns, crossmembers and braces | Machine attachment points and support elevations |
| Conveyor supports | Trestles, longitudinal framing and connection steel | Conveyor route, supports and equipment mounting |
| Process support steel | Rack frames and pipeline-support steelwork | Plant grid and assigned support positions |

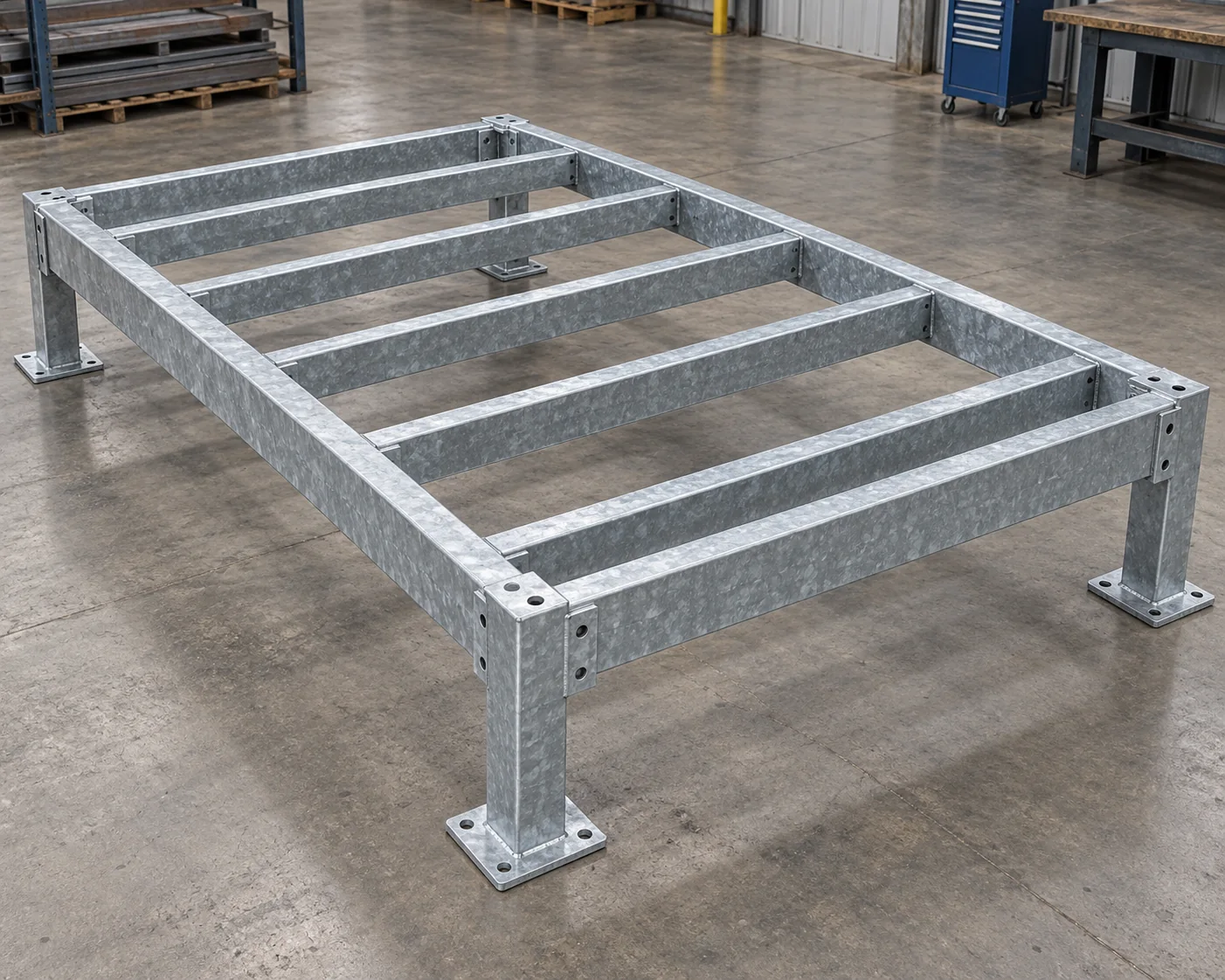

| Platform framing | Perimeter beams and secondary members | Platform layout, openings and support points |
| Base and attachment plates | Drilled plates, stiffeners and welded details | Foundation anchors and equipment hole patterns |
| Field connections | Connection plates and listed bolt assemblies | Shipping joints and installed member connections |
Scroll sideways to see every column.
Platform decking, stairs, handrails, specialist pipe supports and anchors are quoted as named additional items. Machines, conveyors and process piping remain with the equipment package supplied by others.
The OEM layout locates equipment feet, mounting holes and the reference elevation. Bolts and maintenance tools also need usable access around those points. We fabricate attached plates and supporting members to that released arrangement, keeping the equipment interface with the steel drawing.
The custom support-steelwork cost guide shows how interfaces, fabrication and inspection change a quotation even at the same steel weight.
Piping, cable routes and removable equipment parts can pass through or beside the support steel. The layout reserves their openings and service envelope before braces or secondary members are placed. A platform opening is therefore part of the framing detail, with its edge supports included in the member schedule.
Welded subassemblies combine the members that can be transported and installed together. Larger frames use the approved bolted joints for shipping and field assembly. The fabrication drawing identifies those breaks so the site receives manageable pieces without an unplanned change to the structure.
A member connection identifies the bolt grade, series, diameter and grip length, together with its nuts and washers. The approved joint also defines hole type and installation method. A tensile-strength value identifies the bolt material; it does not establish the capacity of the assembled connection.
Base-plate holes follow the foundation anchor pattern and the equipment support datum. Anchor rods retain their specified geometry, projection and nut arrangement. They are scheduled separately from the bolts joining beams and columns, with changes resolved in the approved base detail.
Find the bolt grade or diameter series for a connection schedule.
| F3125 grade | Diameter reference | Minimum tensile strength | Series |
|---|---|---|---|
| A325 | 1/2–1-1/2 in. | 120 ksi | Inch |
| A490 | 1/2–1-1/2 in. | 150 ksi | Inch |
| A325M | M12–M36 | 830 MPa | Metric |
| A490M | M12–M36 | 1040 MPa | Metric |
No matching requirement. Clear the search to restore the table.
Scroll sideways to see every column.
The connection schedule retains the exact grade and series. Coating, nut and washer selection, installation and inspection follow that assembly’s specification. Equivalent-looking metric and inch sizes are not substituted through unit conversion.
A support frame can contain rolled sections, structural tubing and several plate thicknesses. Each piece retains its product specification and grade in the material schedule. Base plates, bearing plates and stiffeners are therefore identified separately from the member they join.
| Plate grade | Reference thickness (in.) | Minimum yield (ksi) | Tensile strength (ksi) |
|---|---|---|---|
| ASTM A36 | 0.100–6.00 | 36 | 58–80 |
| ASTM A572 Grade 50 | 0.100–4.00 | 50 | 65 minimum |
Scroll sideways to see every column.
These values identify the plate material used in a specification. The required support reactions, member geometry and connections establish the structure’s design capacity. Our quote names the ordered section or plate identity instead of treating a grade name as a finished load rating.
The paint specification identifies surface preparation, primer and any finish coats, with the required dry-film thickness and acceptance checks. Equipment seating faces and connection surfaces retain the treatment shown in their detail. This prevents a general frame color from deciding the finish at a bearing or bolted interface.
Hot-dip galvanized assemblies are detailed for cleaning, venting and drainage before fabrication is complete. Coating requirements follow the specified steel category and thickness. Mating surfaces, slots and attached plates are checked for the usable fit required by the final assembly.
An OEM can source the steel frame independently of the machine. Mounting faces, equipment centerlines and transport interfaces remain tied to the same drawing revision. The resulting purchase order identifies the support assembly without importing machine components into the steel scope.

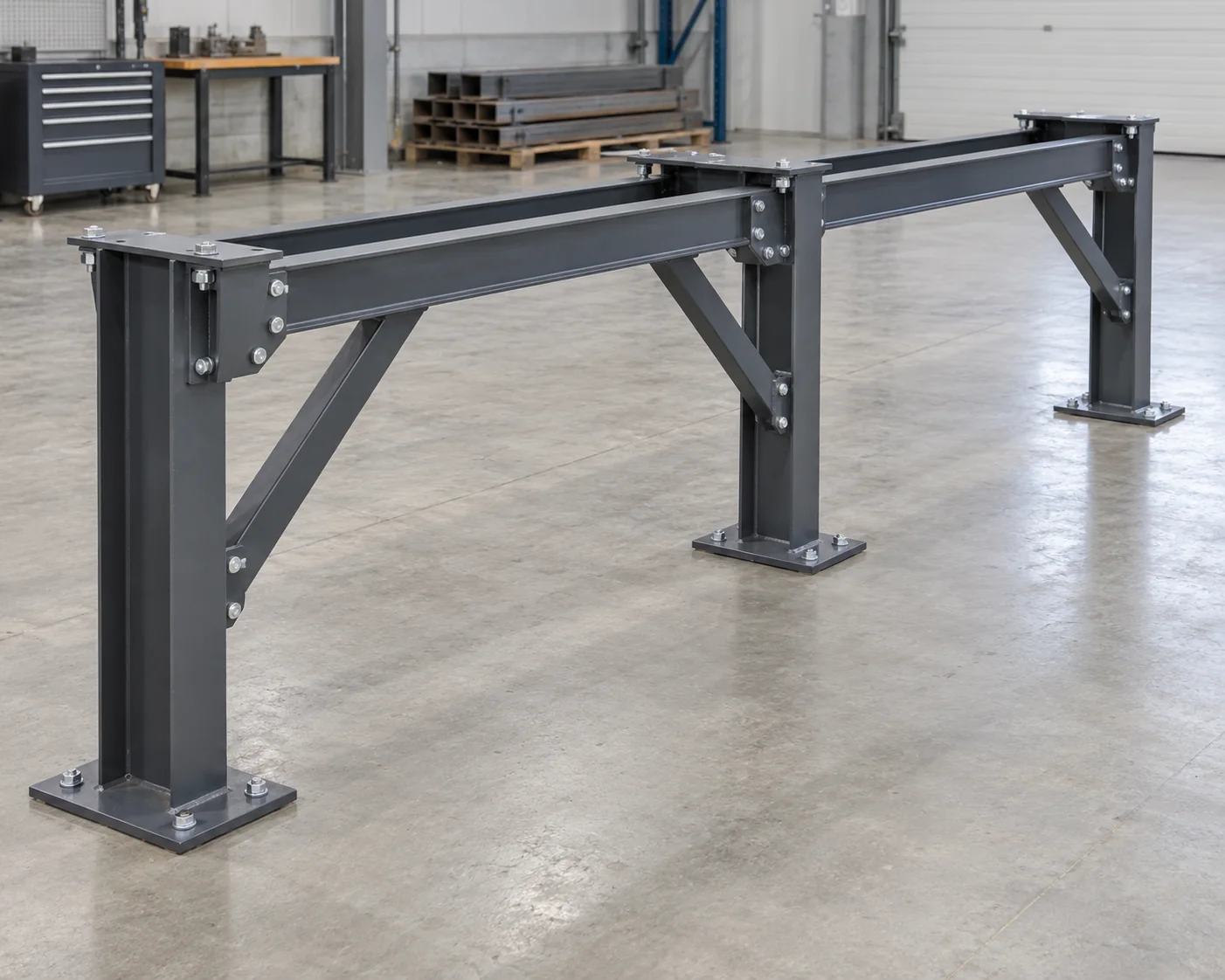

Conveyor supports follow the route, elevation changes and equipment support positions. The equipment supplier’s reactions cover the operating arrangement, while the structural design resolves bracing and foundation connections. Clearances around transfers and maintenance points stay in the released layout.
Pipe-support locations and platform access interact with the plant layout. Thermal movement, restraint positions and equipment removal paths are coordinated in the support design before the frame is fabricated. Our steel package follows the resulting member and connection schedule; specialist pipe-support devices have separate line items.

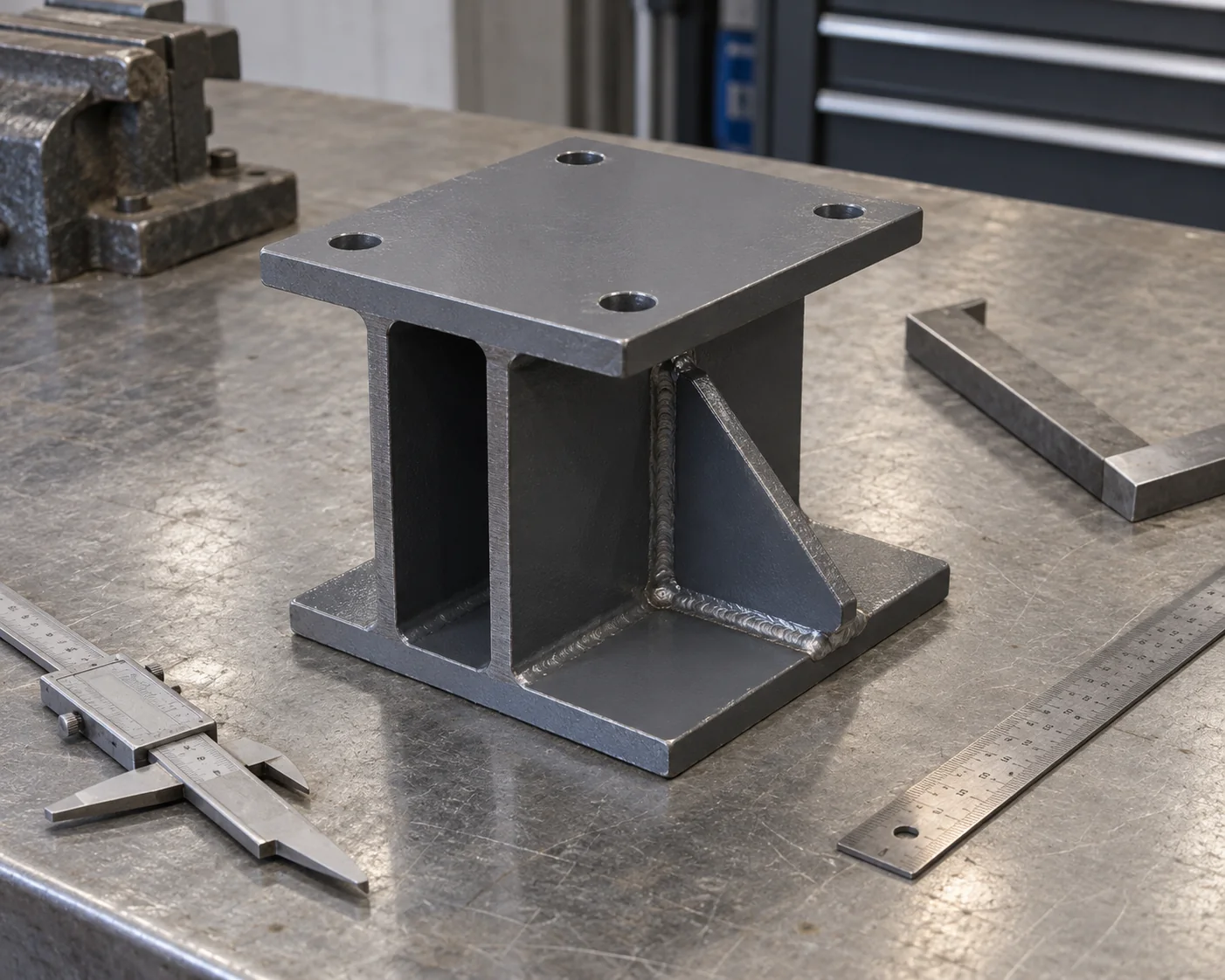

Mounting plates, hole grids and frame geometry are checked from the equipment datum. Attached plates retain their drawing orientation for fit with the machine.
Welds follow the required joint size and fabrication specification. The inspection plan assigns the visual checks and any specified nondestructive examination to the relevant joints. Procedure, qualification and acceptance records are included when the order requires them.
Member and plate records retain the ordered grade and product form. Connection hardware is checked against its listed grade, size and finish. Piece marks and hardware groups connect those items to the assembly drawing used by the installation team.
Paint or zinc checks use the agreed protective system and its acceptance basis. Seating faces, holes and field-joint areas remain usable after treatment. Final dispatch checks reconcile the released steel assemblies, loose parts and packing quantities.
Support prices itemize members, attached plates, fabrication, finish and field hardware. Platform and access items are listed with their quantities, alongside the agreed shipment terms.
A shipping assembly has its own packed size and handling weight. Transport access and the site’s lifting arrangement set the practical limit for that group. Any smaller shipping pieces use the approved connection design before the steel is released for production.

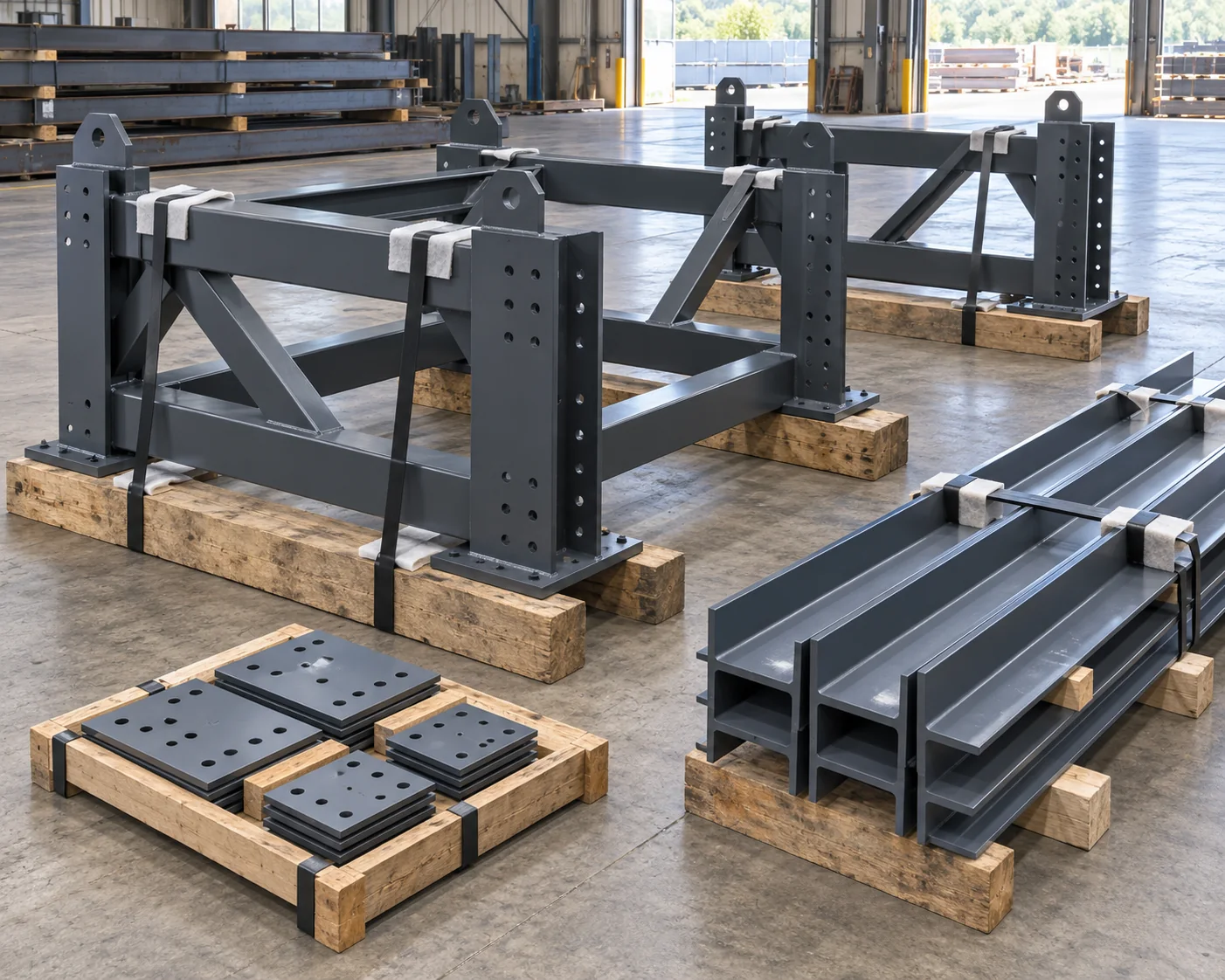

Support frames and loose members are grouped by equipment tag or plant area. Painted and galvanized contact surfaces receive protected support points. Connection plates and hardware are separated by assembly, with their quantities reconciled against the packing list before dispatch.
Yes. An equipment layout with the support positions, approximate geometry, quantities and destination can start a budget quotation. Its stated scope identifies the information used. Fabrication follows the approved member, interface and connection drawings.
The piece list separates shipping assemblies from loose plates and members. A plate already welded into an assembly belongs to that assembly’s drawing; a loose field plate has its own mark and quantity. That distinction keeps fabrication and packing counts consistent.
Yes. Separate equipment tags or installation areas keep each support assembly, drawing revision and quantity identifiable. Their packing groups can be consolidated in the project shipment while retaining distinct piece and hardware counts.
A replacement uses the measured interface and the approved replacement drawing. Existing equipment holes, base conditions and service clearances define the fit. A section name or outside frame dimension alone does not identify all attached plates and connection features.
They can be quoted as named additional items from the approved drawings. Decking, stairs, handrails and specialist pipe supports retain their own quantities rather than being assumed from the structural frame weight.
Share the support drawings or equipment layout with tags, quantities and the delivery destination. Mounting details and any shipping-piece limits define the package interfaces. We quote the fabricated steel, listed hardware, finish and inspection records, with the drawing basis and shipment terms.
