A192, A210 and A213 tubes · Straight lengths for fabrication and planned replacement
We supply straight seamless boiler tubes for bulk export orders. Compare the carbon-steel A192 and A210 options with A213 T11/T22 alloy tube in the size selections below. Full lengths or cut pieces, plain or beveled ends, and order-specific material records support fabrication and planned replacement work.
Carbon and chrome-moly boiler tubes are separate material choices in our supply. Each order keeps the specified standard and grade with the tube dimensions, whether the material is for a new boiler or a scheduled replacement.
A192 carbon tube and A210 Grade A1/C medium-carbon tube are available as straight lengths with plain or beveled ends. The selections below list dimensions for each standard; both retain the minimum-wall basis required for the order.
A213 T11 and T22 supply covers straight chrome-moly boiler and superheater tube. The selected OD/wall pairs are listed separately from the carbon grades, with heat-treatment condition and the minimum or specified average-wall basis retained in the order.
| Item | Supply Range |
|---|---|
| Product | Straight seamless boiler and superheater tubes |
| Carbon tube standards | ASTM A192; ASTM A210 Grade A1 or Grade C |
| Alloy tube grades | ASTM A213 T11 and T22 |
| Selected carbon-tube diameters | 1, 2, 3 and 4.75 in. / 25.4, 50.8, 76.2 and 120.65 mm |
| Selected carbon-tube walls | 2.41–7.95 mm across the selected carbon-tube combinations |
| Carbon tube lengths | 6 m, 12 m or specified cut lengths |
| Tube ends | Plain-cut or beveled to the connection drawing |
| Carbon wall basis | Minimum wall for A192 and A210 |
| A213 wall basis | Minimum wall, or average wall when specified in the order |
| Ordering dimensions | Actual OD × wall with its basis × finished length |
| Material condition | Manufacturing and heat-treatment condition to the ordered specification |
| Order records | Material and inspection records linked to the supplied heat/batch |
Service pressure and metal temperature come from the boiler design. This size table does not assign a working-pressure or temperature rating.
These selections come from our separate BAOLAI A192, A210 and A213 product lists. Each row stays tied to its material standard. The quote identifies the exact grade, wall basis, heat-treatment condition and production quantity.
Swipe left to see all columns.
| Standard / grade | Actual OD (mm) | Listed wall (mm) | Length options (m) |
|---|---|---|---|
| A192 | 25.4 | 2.41 / 2.77 / 3.05 | 6 / 12 |
| A192 | 50.8 | 3.05 / 4.78 / 6.35 | 6 / 12 |
| A192 | 76.2 | 3.05 / 4.78 / 6.35 | 6 / 12 |
| A192 | 120.65 | 5.56 / 6.35 / 7.95 | 6 / 12 |
| A210 A1 / C | 25.4 | 2.41 / 2.77 / 3.05 | 6 / 12 |
| A210 A1 / C | 50.8 | 3.05 / 4.78 / 6.35 | 6 / 12 |
| A210 A1 / C | 76.2 | 3.05 / 4.78 / 6.35 | 6 / 12 |
| A210 A1 / C | 120.65 | 5.56 / 6.35 / 7.95 | 6 / 12 |
| A213 T11 / T22 | 13.7 | 2.24 / 3.02 | 5.8–12 |
| A213 T11 / T22 | 21.3 | 2.77 / 3.73 | 5.8–12 |
| A213 T11 / T22 | 33.4 | 3.38 / 4.55 | 5.8–12 |
| A213 T11 / T22 | 114.3 | 6.02 / 8.56 | 5.8–12 |
Listed wall values are starting dimensions for the material request. The ordered minimum or average basis and its tolerance govern acceptance; carbon and alloy items are not substituted for each other.
A192 product dimensions
Carbon and alloy size lists are available separately:
A210 A1/C dimensions
A213 T11/T22 dimensions

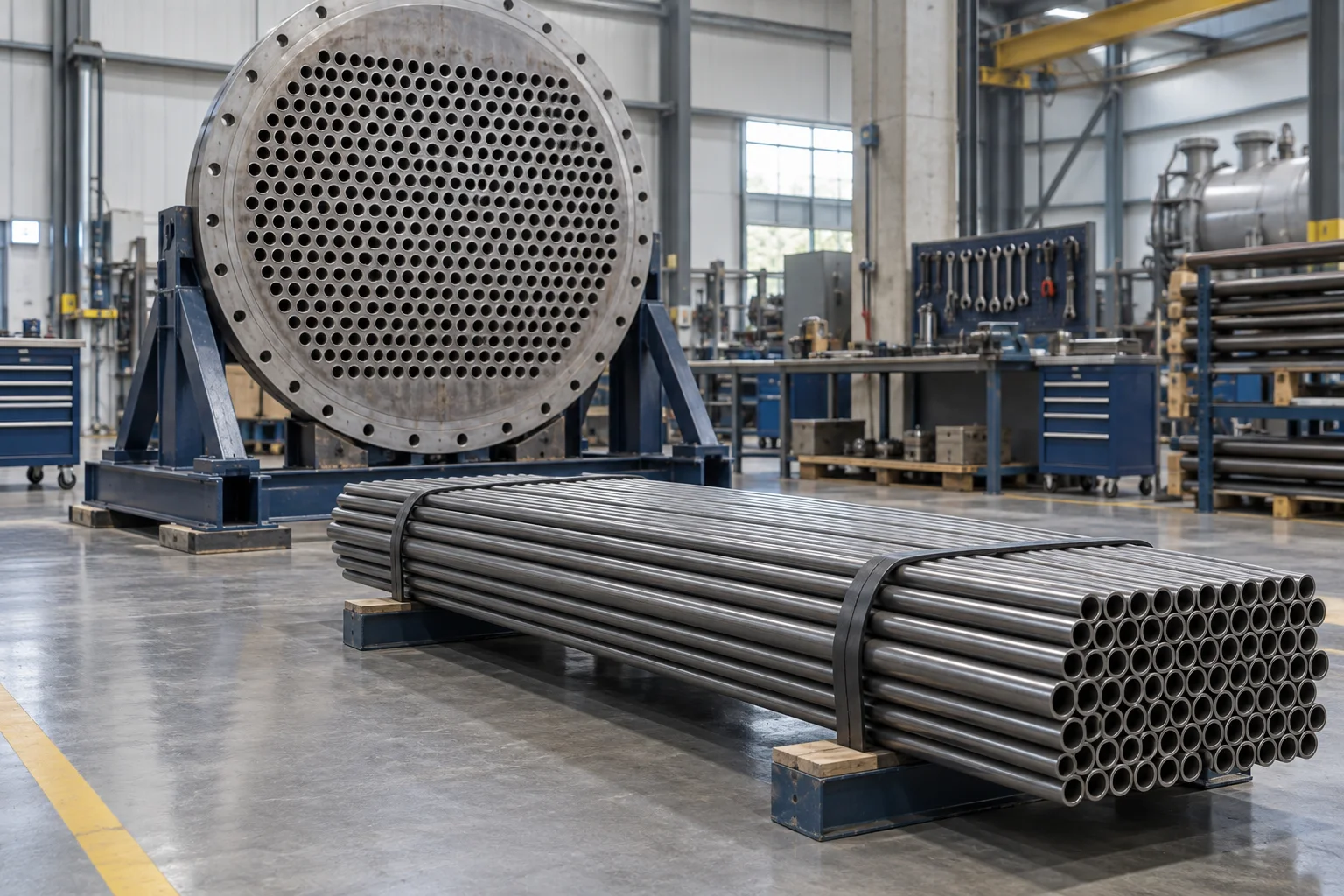

We supply straight tube in full lengths or specified cuts, with plain or beveled ends. The cutting list can retain extra length for forming in your workshop, or specify the finished length for direct assembly.

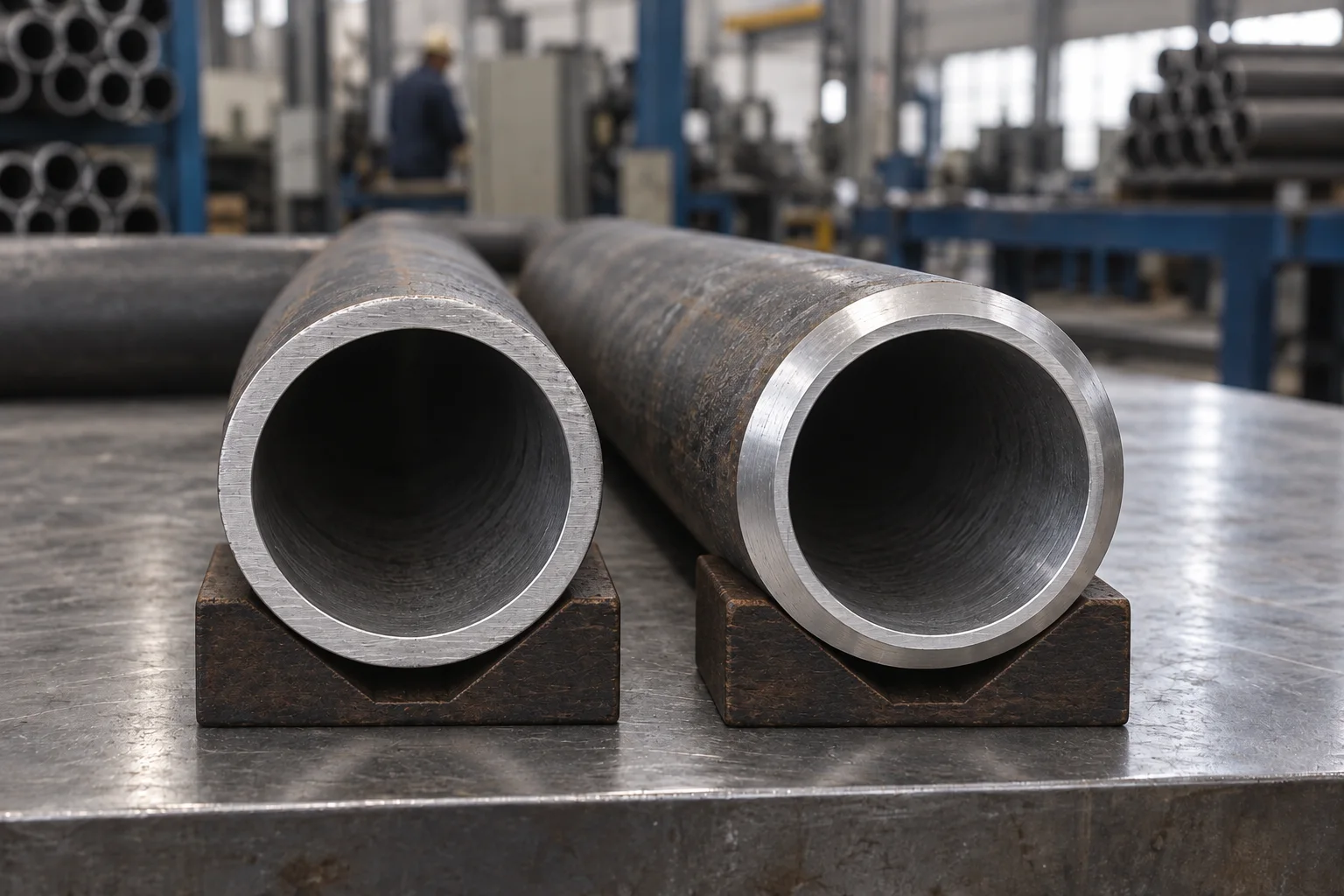

Plain cuts and weld bevels are available for different connection drawings. A tube-sheet expansion detail and a butt-weld detail stay separate on the cutting list, including any machining allowance.
End protection helps keep loose debris out of the bore during shipment. The delivery scope records the required internal condition and temporary surface protection so tubes arrive ready for the planned preparation step.
Release documents identify the supplied standard, grade, heat or batch and applicable test results. Third-party witness requirements are reviewed with the tube order before production.

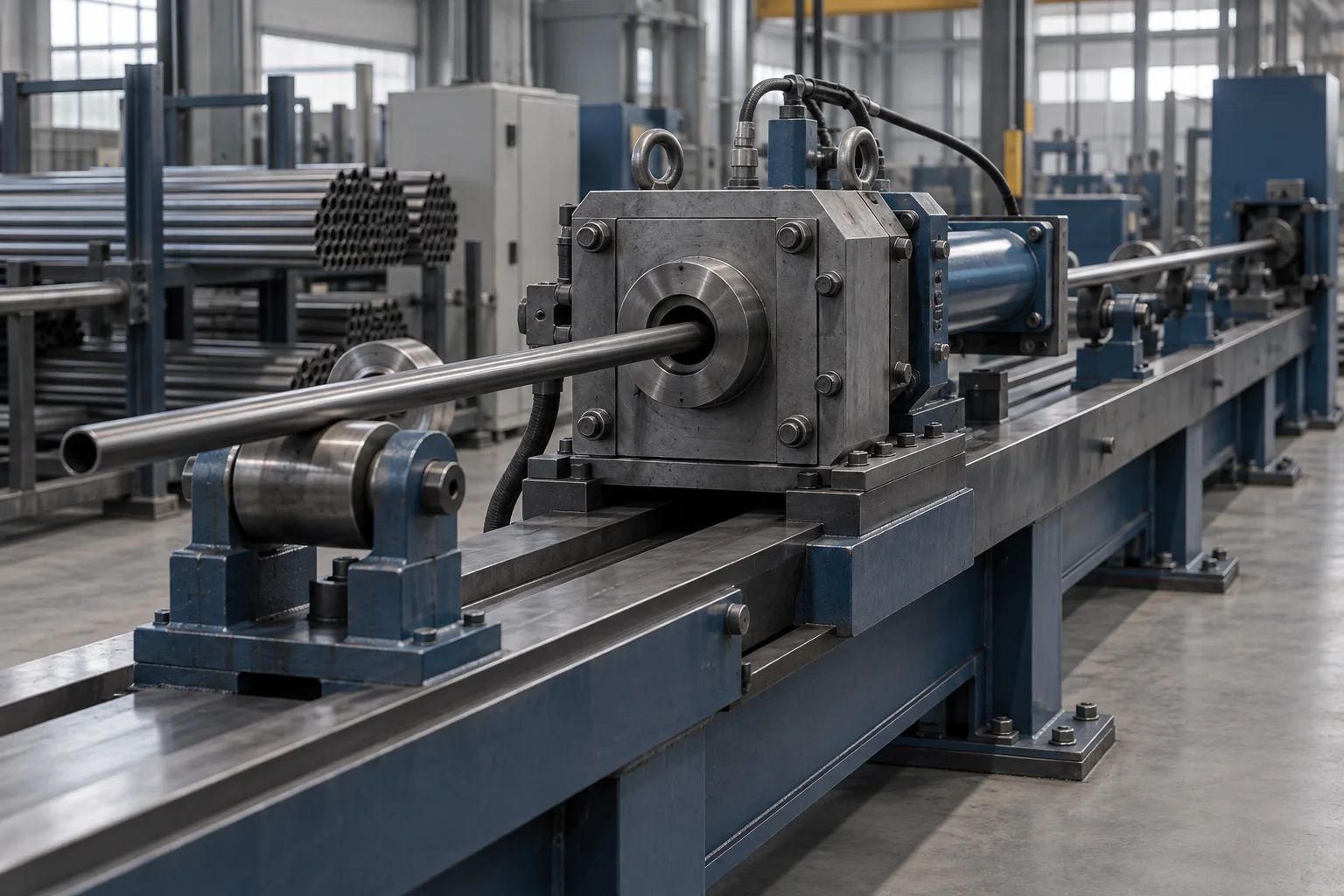

Seamless tubes are finished to the specified OD and wall, using the hot- or cold-finishing route and treatment required for their standard and grade.
The agreed inspection plan covers the applicable hydrostatic or permitted nondestructive test, dimensions and material tests. Sampling and witness stages follow the ordered tube specification.

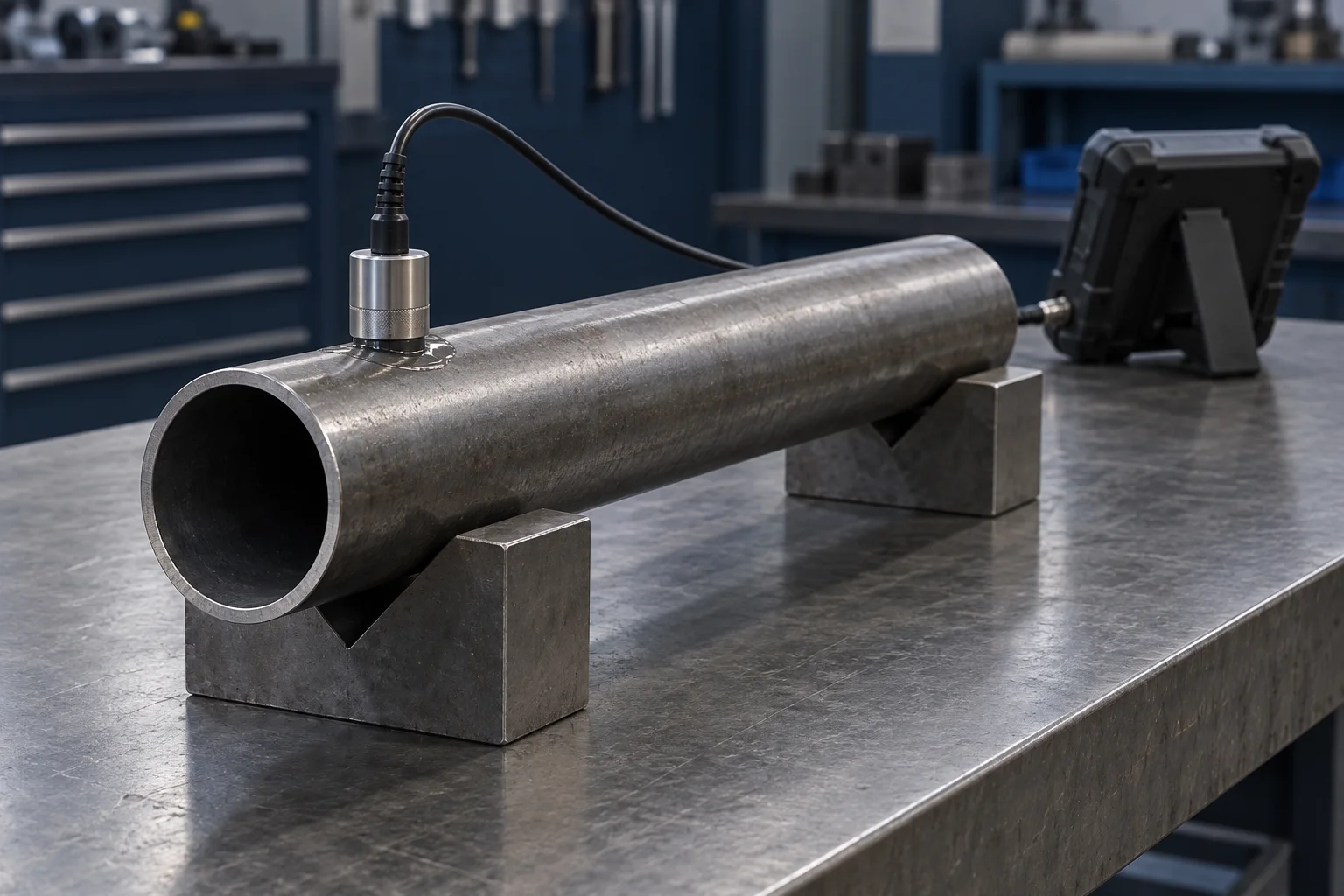

OD, wall and straightness are checked to the stated tolerances, with wall acceptance on the ordered minimum or average basis.
The cut ends, bore and accessible surfaces are checked against the agreed preparation and condition requirements.
Material identification links the supplied tube to its heat or batch records, so similar-looking carbon and alloy tubes remain distinguishable.
The document package pairs chemistry and mechanical results with the tube heat or batch. Any required certificate format and purchaser release record are named in the order so shutdown receiving can check a complete package.
The BAOLAI reference library contains factory QC procedures and earlier pipe reports. Boiler-tube release documents identify the standard, grade and heat or batch supplied for your order.

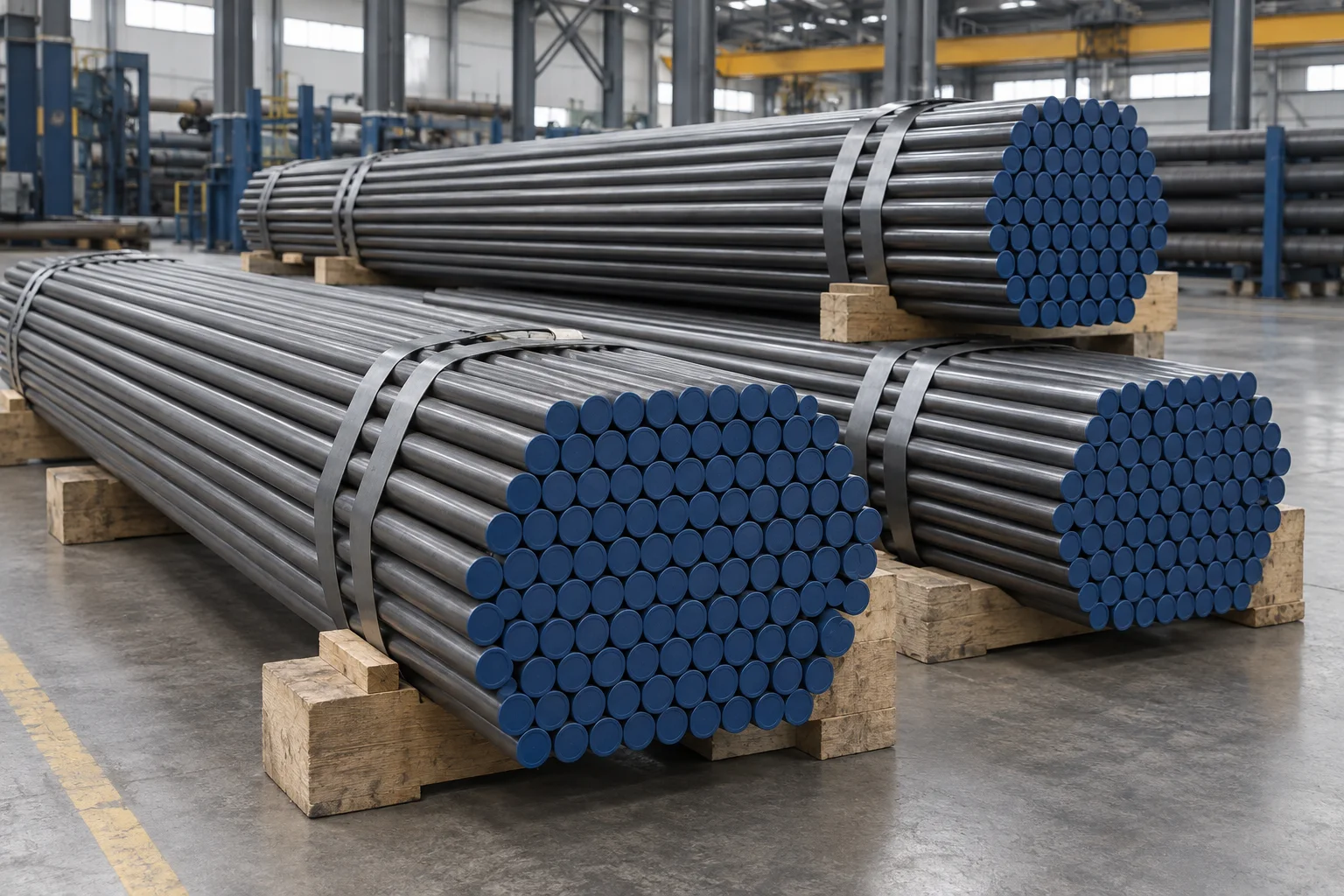

View BAOLAI inspection documentationBundles identify standard, grade, OD, wall, length and order line. Cut pieces have separate length-group counts, keeping carbon and alloy tubes distinct at receiving.
End caps protect the bores. Straps, timber supports and restraints secure the bundles, with support and lifting arrangements matched to the tube length.
Factory export orders are scheduled around production, inspection release and international transit. We review the required shutdown date with the tube schedule and quote the feasible dispatch and delivery basis.
Our quote itemizes carbon and alloy tubes with their cuts, end work, inspection and delivery scope. The same item references carry through to the packing list.
State the ASME specification and required code edition on the inquiry. We review the material and documentation against that requirement. An ASTM designation alone does not establish that the shipment meets your ASME purchase specification, and tube supply is separate from certification of a completed boiler.
They are different product specifications. T11 is a tube grade under A213; P11 is a pipe grade under A335. Keep the original designation and dimensions on the material list, even when the alloy names sound similar.
A179 and A192 cover different applications and requirements. A179 is specified for seamless cold-drawn low-carbon heat-exchanger and condenser tubing. Keep an A192 boiler requirement as A192 unless the responsible designer approves a change.
A worn sample helps identify geometry, but corrosion or erosion can hide the original wall thickness. Supply the old material certificate, equipment records or tube schedule alongside the sample measurements. The replacement specification must be established before production.
This page covers straight seamless tubes and specified end preparation. Bent shapes, fins and assembled panels are separate fabrication requests. Submit their drawings for a scope review rather than assuming they are included in a straight-tube quotation.
We review the production quantity for each grade and tube size separately. Any minimum is shown on that item in the quote, including mixed-grade or replacement purchases.
Attach your tube schedule and add a short destination and delivery-date note. If there is no list yet, enter the standard, OD, wall and quantity you know. We review any remaining grade, end and inspection details with the itemized material and export quote.
